DEUTZ Powered Generating Sets – Three Phase – Liquid Cooled – Open Frame
1500 RPM – FROM 30 KVA TO 500 KVA
Standard Features
- Earth fault device up to 150 kva
- Magnetothermic circuit breaker
- Socket 32A 230V Options on request
- Socket 32A 400V
- Socket 63A 400V < 40 Kva VPower terminal board > 40 Kva
- Automatic starting socket up to 150 Kva
- Voltmeter + phase selector switch
- Ammeter
- Frequency meter
- Hours run meter
- Engine safety device in case of: high water temperature, low oil pressure, battery charger fault
- Low fuel level switch
- Emergency stop button
- * RPM Electronic governor
- Incorporated battery
- Electronic voltage governor
- Diesel filter with water strainer
Options on request
- Slow speed trolley with a drawn bar
- Road tow trailer
- Automatic mains failure panel with change over
- Water heater
- Automatic refueling device from external tank
- Protective structure with lifting hook
- Additional instruments
Other configurations
- Models with different voltage
- 60 Hz versions
Model | Max Power KVA | Engine | Dimensions | Weight | Noise Level | ||||||
Cont. | Max. | Model | N. Cyl. | Displacement cc. | Power Hp | Tank capacity Lt. | Fuel consumption Gr/kwh | LxWxH mm. | Kg. | Lwa | |
GP 30A/D | 28 | 30 | F4M 1011 F | 4 | 2912 | 39 | 70 | 214 | 1850x700x1100 | 710 | / |
GP 40A/D | 40 | 44 | BF4M 1011 F | 4 | 2912 | 55 | 70 | 212 | 1850x700x1100 | 820 | / |
GP 60A/D | 60 | 66 | BF4M 1012 E | 4 | 3192 | 74 | 100 | 216 | 2100x900x1300 | 1030 | / |
GP 80A/D | 73 | 81 | BF4M 1012 EC | 4 | 3192 | 91 | 100 | 216 | 2100x900x1300 | 1100 | / |
GP 100A/D | 106 | 117 | BF4M 1013 EC | 4 | 4764 | 133 | 100 | 206 | 2100x900x1300 | 1170 | / |
GP 130A/D | 136 | 151 | BF6M 1013 E | 6 | 7146 | 171 | 140 | 211 | 2850x1000x1400 | 1400 | / |
GP 150A/D | 150 | 165 | BF6M 1013 EC | 6 | 7146 | 203 | 140 | 197 | 2850x1000x1400 | 1550 | / |
GP 200A/D | 200 | 220 | BF6M 1015 | 6 | 11906 | 300 | 300 | 213 | 3250x1300x1650 | 2000 | / |
GP 250A/D | 250 | 275 | BF6M 1015 C1 | 6 | 11906 | 355 | 300 | 198 | 3250x1300x2300 | 2600 | / |
GP 300A/D | 300 | 330 | BF6M 1015 C2 | 6 | 11906 | 412 | 300 | 198 | 3250x1300x2300 | 2900 | / |
GP 350A/D | *350 | 385 | BF6M 1015 C3 | 6 | 11906 | 455 | 300 | 198 | 3400x1600x2200 | 3200 | / |
GP 400A/D | *400 | 440 | BF8M 1015 C1 | 8 | 15874 | 526 | 320 | 198 | 3400x1600x2200 | 3800 | / |
GP 450A/D | *450 | 500 | BF8M 1015 C2 | 8 | 15874 | 585 | 320 | 198 | 3400x1600x2200 | 4000 | / |
GP 500A/D | *500 | 550 | BF8M 1015 CP | 8 | 15874 | 637 | 320 | 195 | 3400x1800x2200 | 4200 | / |

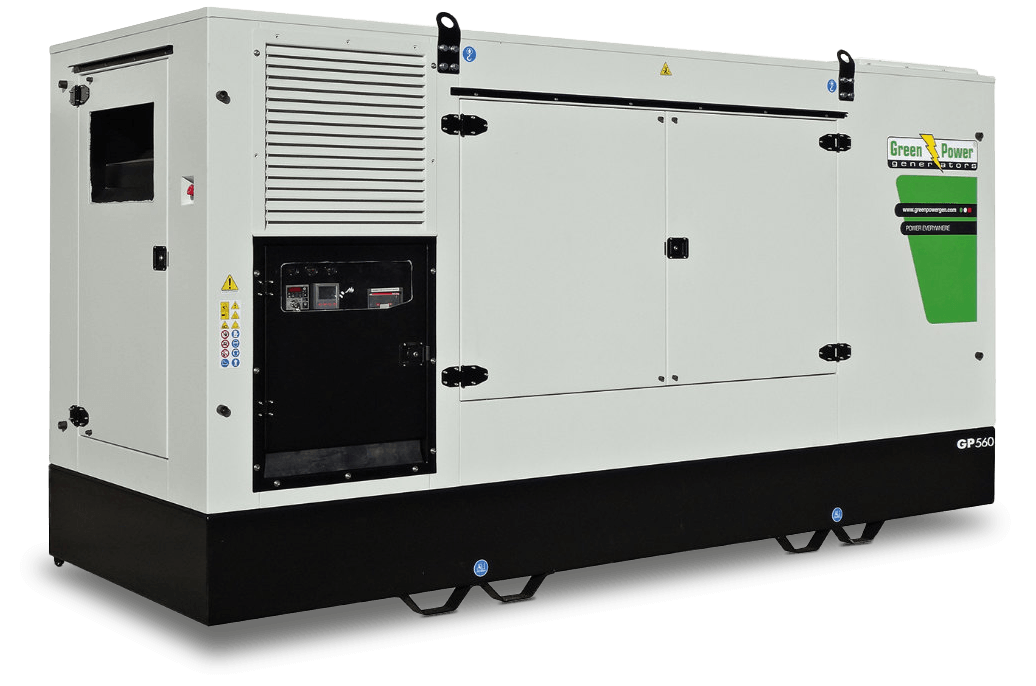

DEUTZ Powered Generating Sets – Three Phase – Liquid Cooled – Sound Proofed
1500 RPM – FROM 30 KVA TO 500 KVA
Standard Features
- Earth fault device up to 150 kva
- Magnetothermic circuit breaker
- Socket 32A 230V Options on request
- Socket 32A 400V
- Socket 63A 400V < 40 Kva VPower terminal board > 40 Kva
- Automatic starting socket up to 150 Kva
- Voltmeter + phase selector switch
- Ammeter
- Frequency meter
- Hours run meter
- Engine safety device in case of: high water temperature, low oil pressure, battery charger fault
- Low fuel level switch
- Emergency stop button
- * RPM Electronic governor
- Incorporated battery
- Electronic voltage governor
- Diesel filter with water strainer
- Lifting hook
- Inox-steel handles and hinges
- Industrial painting
- External fuel-tank cap with key
Options on request
- Slow speed trolley with a drawn bar
- Road tow trailer
- Automatic mains failure panel with change over
- Water heater
- Oil pump
- Automatic refueling device from external tank
- Additional instruments
Other configurations
- Models with different voltage
- 60 Hz versions
| Model | Max Power KVA | Engine | Dimensions | Weight | Noise Level | ||||||
| Cont. | Max. | Model | N. Cyl. | Displacement cc. | Power Hp | Tank capacity Lt. | Fuel consumption Gr/kwh | LxWxH mm. | Kg. | Lwa | |
| GP 30S/D | 28 | 30 | F4M 1011 F | 4 | 2912 | 39 | 100 | 214 | 2100x900x1170 | 910 | 93 |
| GP 40S/D | 40 | 44 | BF4M 1011 F | 4 | 2912 | 55 | 100 | 212 | 2100x900x1170 | 1030 | 93 |
| GP 60S/D | 60 | 66 | BF4M 1012 E | 4 | 3192 | 74 | 140 | 216 | 2500x1000x1400 | 1300 | 93 |
| GP 80S/D | 73 | 81 | BF4M 1012 EC | 4 | 3192 | 91 | 140 | 216 | 2500x1000x1400 | 1370 | 94 |
| GP 100S/D | 106 | 117 | BF4M 1013 EC | 4 | 4764 | 133 | 140 | 206 | 2850x1000x1400 | 1430 | 94 |
| GP 130S/D | 136 | 151 | BF6M 1013 E | 6 | 7146 | 171 | 150 | 211 | 3000x1100x1500 | 1700 | 94 |
| GP 150S/D | 150 | 165 | BF6M 1013 EC | 6 | 7146 | 203 | 150 | 197 | 3000x1100x1500 | 2300 | 95 |
| GP 200S/D | 200 | 220 | BF6M 1015 | 6 | 11906 | 300 | 250 | 213 | 4000x1250x2200 | 2750 | 95 |
| GP 250S/D | 250 | 275 | BF6M 1015 C1 | 6 | 11906 | 355 | 250 | 198 | 4000x1250x2200 | 3500 | 95 |
| GP 300S/D | 300 | 330 | BF6M 1015 C2 | 6 | 11906 | 412 | 400 | 198 | 4500x1450x2300 | 3900 | 95 |
| GP 350S/D | *350 | 385 | BF6M 1015 C3 | 6 | 11906 | 455 | 400 | 198 | 4500x1450x2300 | 4250 | 95 |
| GP 400S/D | *400 | 440 | BF8M 1015 C1 | 8 | 15874 | 526 | 450 | 198 | 5000x1900x2400 | 5000 | 95 |
| GP 450S/D | *450 | 500 | BF8M 1015 C2 | 8 | 15874 | 585 | 450 | 198 | 5000x1900x2400 | 5200 | 95 |
| GP 500S/D | *500 | 550 | BF8M 1015 CP | 8 | 15874 | 637 | 450 | 195 | 5000x1900x2400 | 5400 | 95 |
