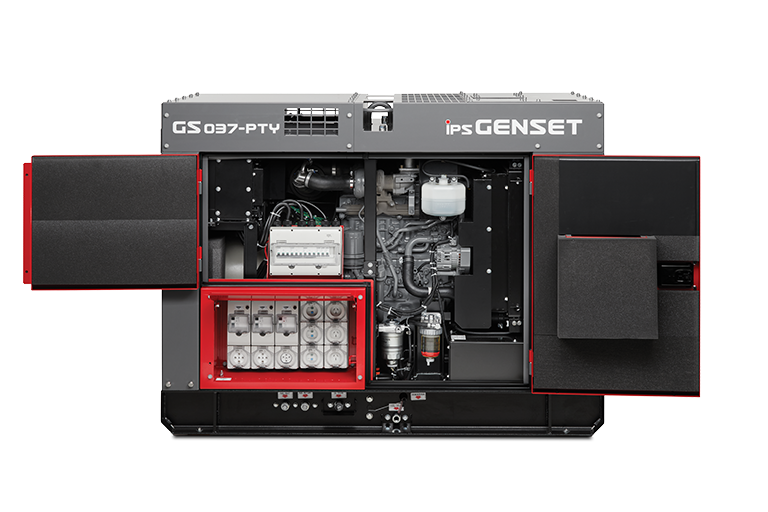

ISUZU POWER SOLUTIONS GENERATORS – GS037PTY (37 KVA)
SKU: GS037PTY
Product information
ISUZU POWER SOLUTIONS 37 KVA GENSET (GS037PTY)
- Rated output: 37 kVA / 29.6 kWe (Prime)
- Powered by genuine Isuzu 4JG1T diesel engine
- Sound level: 51 dB(A) @ 7m — new sound suppression technology with unique enclosure design
- Premium ComAp InteliLite MRS16 generator controller
- Engine and alternator safety devices
- Lockable large maintenance doors with easy access to service items
- External oil drain, coolant drain and fuel drain ports
- Emergency stop, adjustable voltage regulator, battery isolator
- Earth leakage circuit breakers
- Premium quality silent canopy
- Manufactured in Japan for Australian conditions
| Unit specifications | |
|---|---|
| Rated output | 37 kVA / 29.6 kWe (Prime) |
| Rated voltage / frequency | 415 VAC / 50 Hz |
| Sound level @ 7m | 51 dB(A) |
| Dimensions (L x W x H) | 1770 x 920 x 1350 mm |
| Weight | 1170 kg (dry) |
| Fuel tank capacity | 124 L |
| Fuel consumption @ 100% load | 8.4 L/hour (approx.) |
| Australian receptacles | 2 x 415V 32A (3PH), 1 x 415V 20A (3PH), 3 x 240V 15A (1PH) |
| Generator (alternator) | |
|---|---|
| Rated output | 37 kVA / 29.6 kWe (Prime) |
| Rated voltage / frequency | 415 VAC / 50 Hz |
| Rated current / power factor | 51.5 A / 0.80 |
| Alternator | Rotating Field, Brushless 3-Phase Synchronous Alternator, 4-Pole |
| Winding / insulation class | 3-Phase, 4-Wire / F |
| Excitation | Self Excitation (Brushless) |
| Engine | |
|---|---|
| Type | Water cooled, 4-cycle diesel engine |
| Model / cylinders | Isuzu 4JG1T / 4 |
| Displacement | 3.059 L |
| Continuous rated output | 35.4 kW @ 1500 RPM |
| Combustion system | Direct Injection, Turbocharged |
| Emission rating | Tier-2 |
| Cooling method | Radiator |
| Cooling water volume | 10.9 L (50-50% Water-Glycol) |
| Lubricant volume | 10.2 L |
| Fuel | Diesel Fuel (ASTM No. 2-D) only |
| Fuel consumption @ 100% load | 8.4 L/hour (approx.) |
| Starting method | Electric start |
| Starter motor capacity | 12 V – 2.2 kW |
| Charging alternator capacity | 12 V – 50 A |
| Battery / battery isolator | 95D31R / 1-Pole |
Control panel: Premium ComAp InteliLite MRS16 generator controller. Manual and remote start applications, complete generator set monitoring and protection, true voltage RMS measurement, 3-phase power measurement, load shedding and dummy load capability, PLC programmable, detailed event and performance log, fuel theft protection and fuel level monitoring.
