ISUZU MARINE – 6M170
SKU: 6M170
Product information

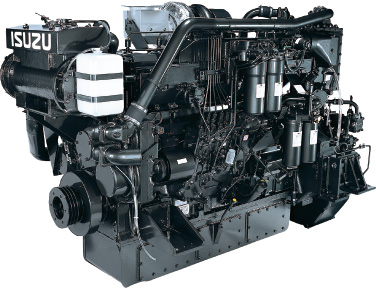

ISUZU MARINE 6M170 ENGINE
- Genuine Isuzu marine diesel engine, manufactured in Japan
- Direct injection type
- Aspiration: Turbo with intercooler
- Compliant with Tier 2 regulations
- Suitable for commercial fishing, charter, ferry and pleasurecraft applications
- Available in New Zealand and the Pacific through Shaw Diesels — an authorised Isuzu dealer
| 6M170AP-5 — technical data | |
|---|---|
| Variant | 6M170AP-5 |
| Maximum output | 702(954)/2000 kW (PS) / RPM |
| Rated output | 639(869)/1938 kW (PS) / RPM |
| Displacement | 23.1 |
| Cylinders / Bore x Stroke | 6 – 170×170 |
| Aspiration | Turbo with intercooler |
| Combustion system | Direct injection type |
| Dimensions (L x W x H) | 2665×1170×1547 mm |
| Dry weight | 4005 kg |
| Exhaust gas regulations | Compliant with Tier 2 regulations |
| Loadable tonnage class | D (10 – less than 15 tons) |
