ISUZU POWER SOLUTIONS – 4BG1 TRW

SKU: 4BG1-TRW

Product information

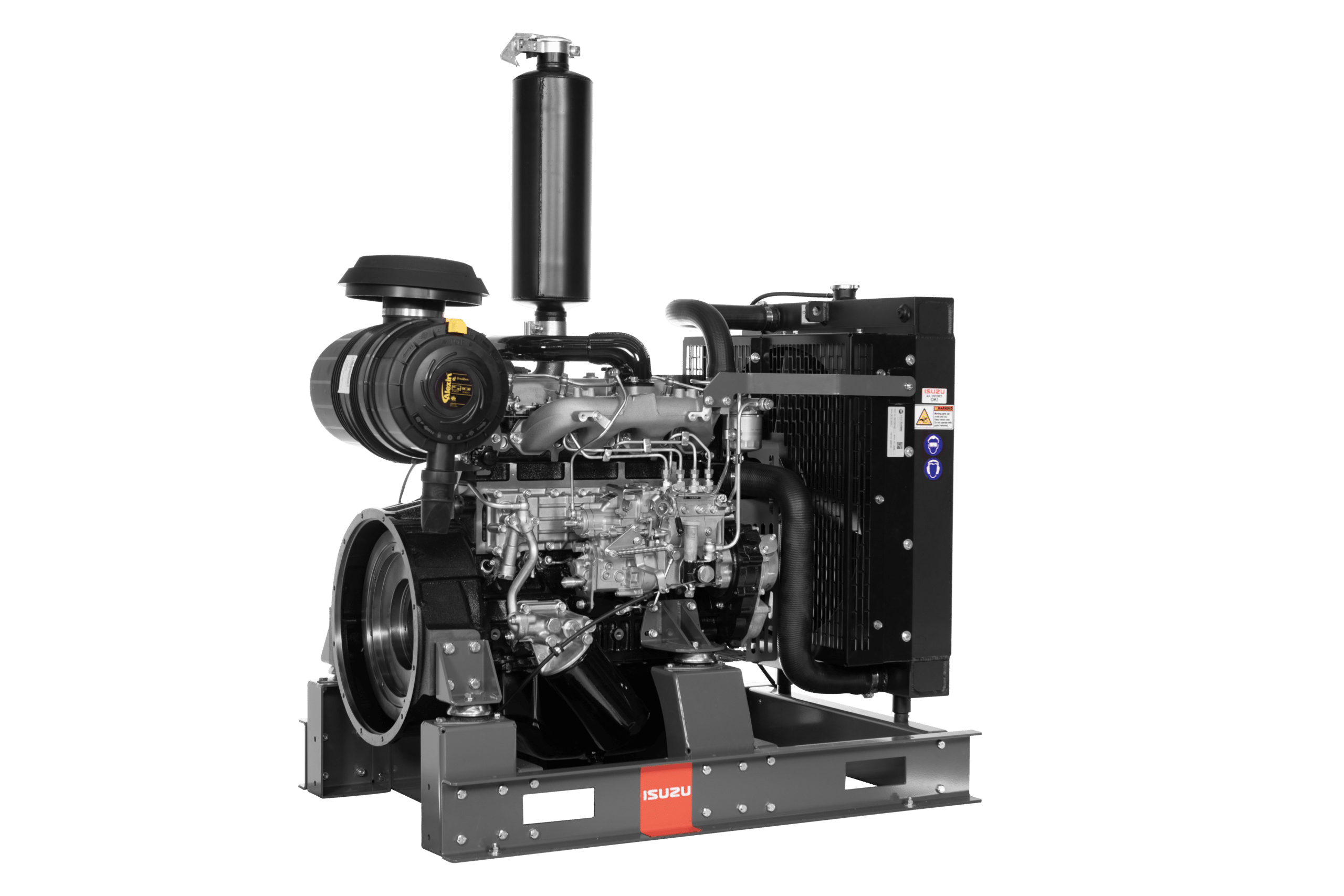

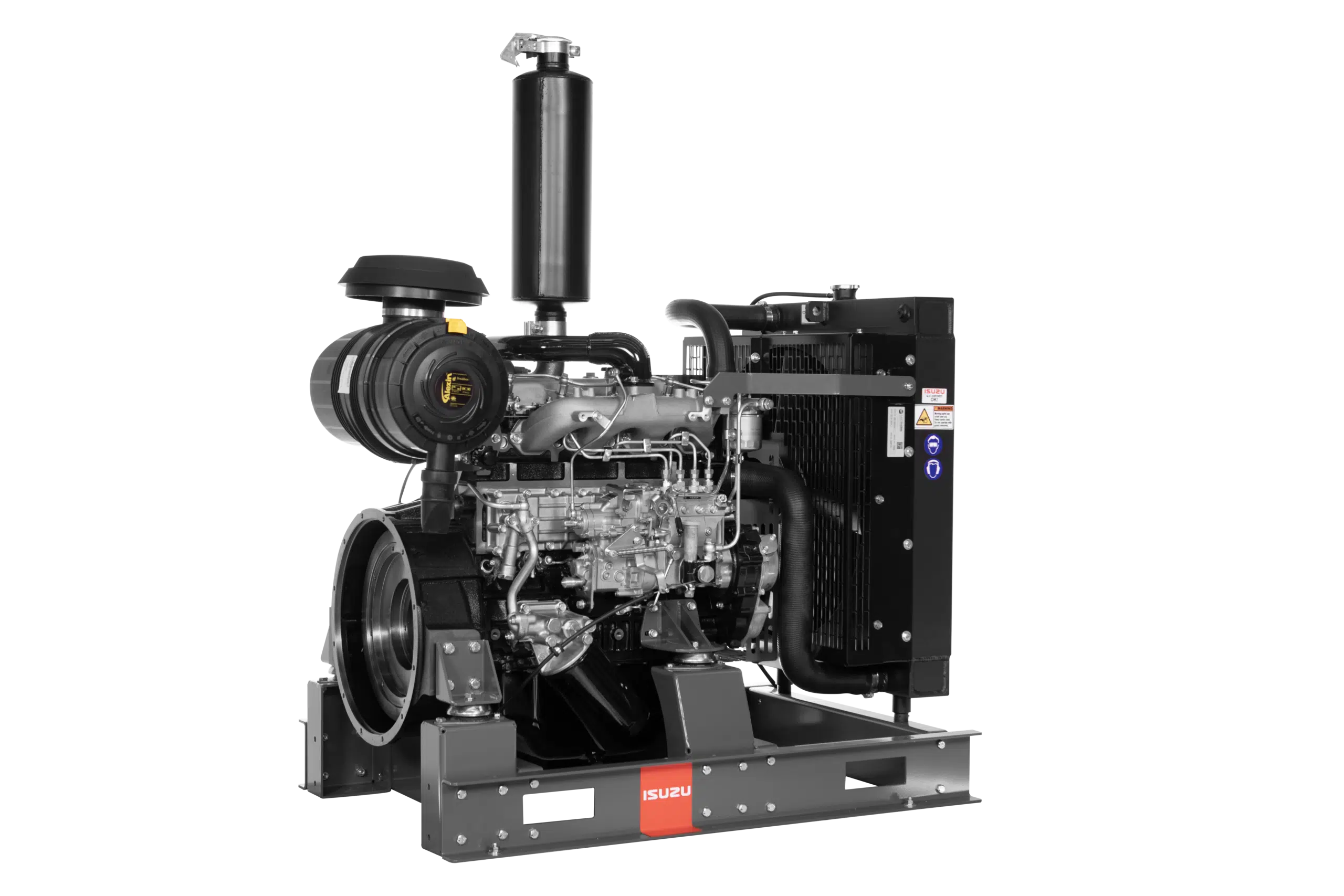

ISUZU 4BG1 ENGINE

Turbocharged diesel engine
Mechanical direct injection fuel system
Low noise, low fuel consumption, low maintenance
Easy to start
Reliable power
Water cooled
Tier-2 emission spec. reference
Genuine Isuzu engine manufactured in Japan

Technical data
Engine type	Vertical water-cooled 4-cycle Diesel
Model	4BG1-TRW (Isuzu)
Emission spec. reference	Tier-2 / Stage-II
Max. rated output	91.7 kW (123.0 hp) @ 2500 RPM
Continuous output	77.9 kW (104.5 hp) @ 2500 RPM
Max. torque	387 Nm @ 2000 RPM
Number of cylinders	4
Displacement	4.3 L
Bore x Stroke	105 x 125 mm
Combustion system	Direct Injection (Turbocharged)
Dimensions (L x W x H)	935 (L) x 666 (W) x 855 mm (H)
Dry weight	360 kg
Fuel consumption @ 100% load	27.8* L/h @ 100% load

POWER UNIT CONFIGURATIONS:

1. Starter (STR)
Light duty air cleaner system
Industrial grade exhaust system
Engine mounting feet
High performance heavy duty cooling system (50°C +)
12V complete electrical system (incl. engine harness
2. Economy (ECY)
Features include STR plus:
Medium duty air cleaner system (dual element)
Skid rail chassis mounting
Mechanical vernier throttle kit
IP65 ‘ECO’ engine controller
Engine RPM sender (MPU)
3. Premium (PRM) Features include ECY plus:
Air cleaner restriction indicator
Air cleaner rain/inlet hood
Residential grade exhaust system
Engine oil pressure and temperature senders
IP65 ‘PRO’ engine controller (advanced watchdog
Remote oil drain kit

OPTIONS:

Premium pump pressure transducer range
Extension skid for mounting of auxiliary items
Flywheel stub shafts
Auxiliary PTO crankshaft pulley
Heat Exchanged cooling package
4G remote monitoring and control kit
Low coolant alarm protection kit
160W solar battery charging kit
Extension harnesses
Coolant surge tank kit
24V electrical system
Energise to stop kit
Vibration isolation mounts
