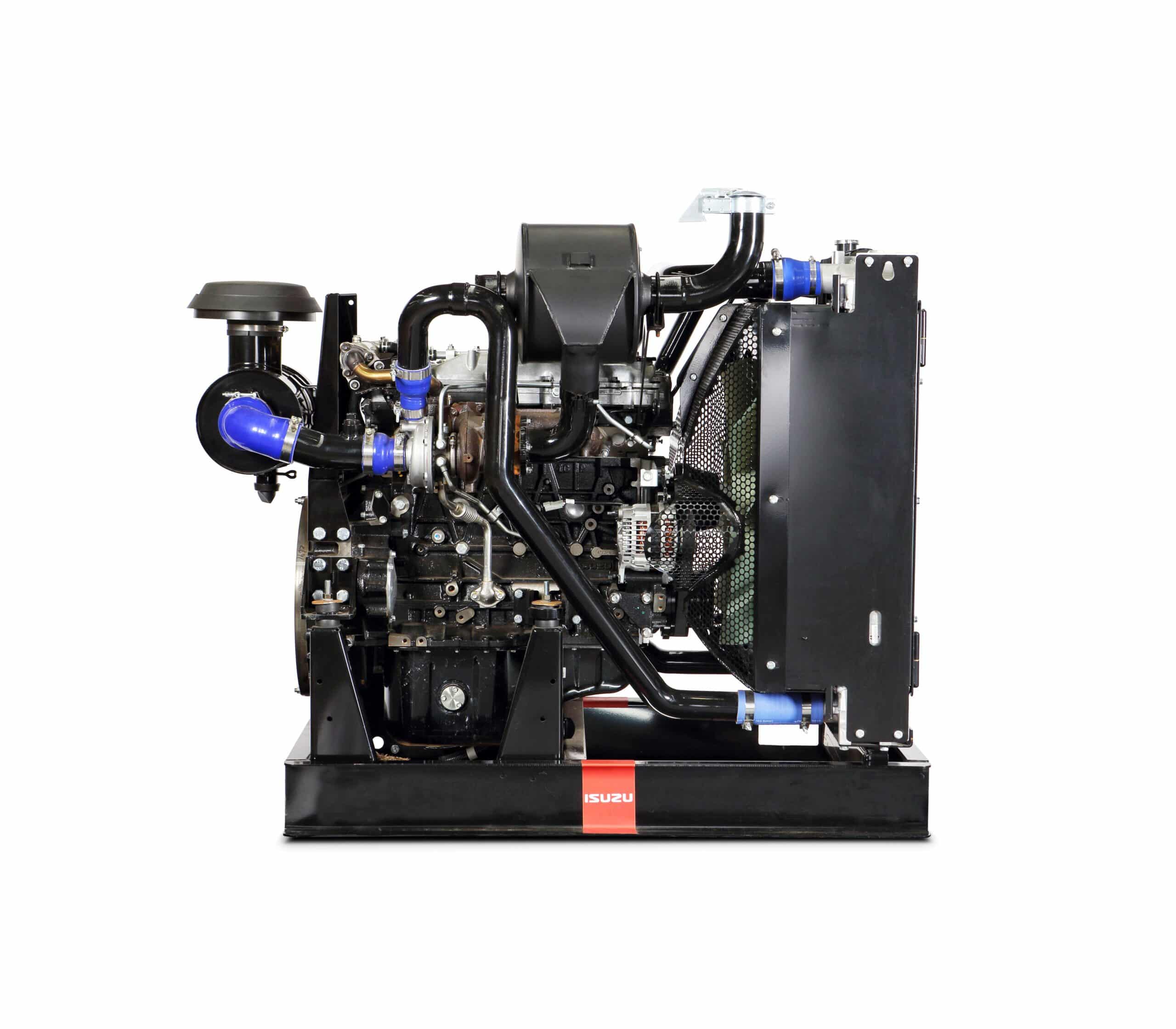

ISUZU POWER SOLUTIONS – 4HK1
SKU: 4HK1-XYBW02
Product information
ISUZU 4HK1 ENGINE
- Turbocharged intercooled diesel engine
- Common rail direct injection fuel system
- Low noise, low fuel consumption, low maintenance
- Easy to start
- Reliable power
- Water cooled
- Tier-3 emission spec. reference
- Genuine Isuzu engine manufactured in Japan
| Technical data | |
|---|---|
| Engine type | Vertical water-cooled 4-cycle Diesel |
| Model | 4HK1-XYBW02 (Isuzu) |
| Emission spec. reference | Tier-3 / Stage-IIIA |
| Max. rated output | 147.0 kW (197.1 hp) @ 2100 RPM |
| Continuous output | 125.0 kW (167.6 hp) @ 2100 RPM |
| Max. torque | 686 Nm @ 1500 RPM |
| Number of cylinders | 4 |
| Displacement | 5.2 L |
| Bore x Stroke | 115 x 125 mm |
| Combustion system | Direct Injection (Turbocharged Intercooled) |
| Dimensions (L x W x H) | 1020 (L) x 776 (W) x 1034 mm (H) |
| Dry weight | 470 kg |
| Fuel consumption @ 100% load | 37.2* L/h @ 100% load |
POWER UNIT CONFIGURATIONS:
- 1. Starter (STR)
- Light duty air cleaner system
- Industrial grade exhaust system
- Engine mounting feet
- High performance heavy duty cooling system (50°C +)
- 12V complete electrical system (incl. engine harness
- 2. Premium (PRM) Features include STR plus:
- Heavy duty air cleaner system (dual element)
- Air cleaner restriction indicator
- Residential grade exhaust system
- Skid rail chassis mounting
- IP65 ‘PRO’ engine controller (advanced watchdog
- Remote oil drain kit
OPTIONS:
- Flywheel stub shafts
- Auxiliary PTO crankshaft pulley
- Auxiliary PTO clutch
- Premium pump pressure transducer range
- 4G remote monitoring and control kit
- Low coolant alarm protection kit
- 160W solar battery charging kit
- Extension harnesses
- Coolant surge tank kit
- 24V electrical system
- Vibration isolation mounts
- E N G I N E
- Type:
- Vertical water-cooled 4-cycle Diesel
- Model (Manufacturer):
- 4HK1-XYBW02 (Isuzu)
- Emission Spec. Reference:
- Tier-3 / Stage-IIIA
- Max. Rated Output:
- 147.0 kW (197.1 hp) @ 2100 RPM
- Continuous Output:
- 125.0 kW (167.6 hp) @ 2100 RPM
- Max. Torque
- 686 Nm @ 1500 RPM
- Displacement:
- 5.2 L
- Combustion System:
- Direct Injection (Turbocharged Intercooled)
- O/A Dimensions:
- 1020 (L) x 776 (W) x 1034 mm (H)
- Dry Weight:
- 470 kg
- Fuel Consumption:
- 37.2* L/h @ 100% load
- P O W E R U N I T C O N F I G U R A T I O N S
- 1. Starter (STR)
- • Light duty air cleaner system
- • Industrial grade exhaust system
- • Engine mounting feet
- • High performance heavy duty cooling system (50°C +)
- • 12V complete electrical system (incl. engine harness
- and stop solenoid)
- 2. Premium (PRM) Features include STR plus:
- • Heavy duty air cleaner system (dual element)
- • Air cleaner restriction indicator
- • Residential grade exhaust system
- • Skid rail chassis mounting
- • IP65 ‘PRO’ engine controller (advanced watchdog
- protection + application I/O)
- • Remote oil drain kit
- D E S I G N
- Australian designed and sourced engine mounts and skid
- Australian designed heavy duty bar and plate all aluminium radiator
- Premium quality air cleaners
- Complete electrical engine harness (includes engine stop solenoid,
- glow plug assisted start, fuel feed pump)
- IP65 stainless steel ECM enclosure with LED indicators
