ISUZU POWER SOLUTIONS – 4JG1
SKU: 4JG1-PK
Product information

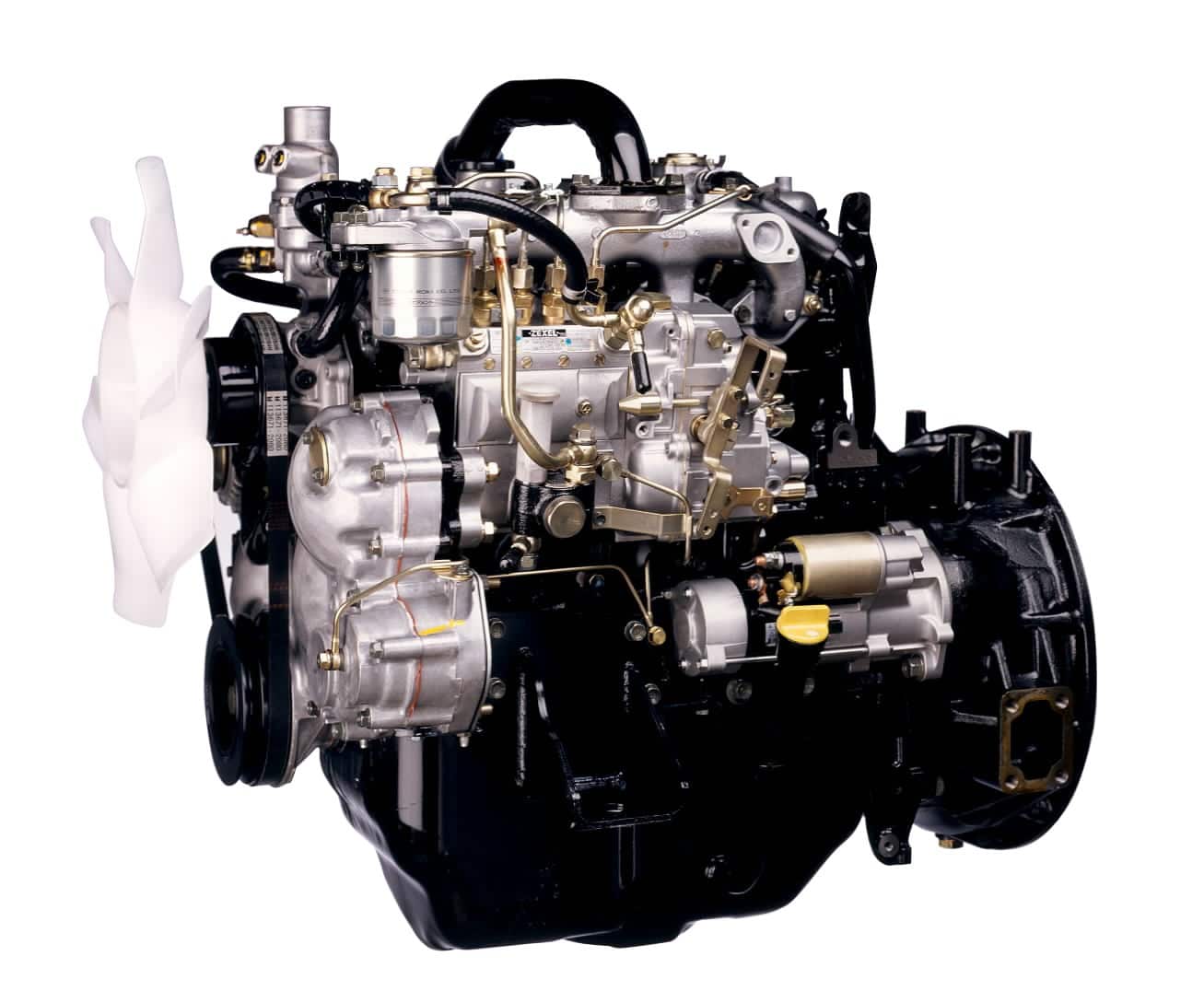

ISUZU 4JG1 ENGINE
- Naturally aspirated diesel engine
- Mechanical direct injection fuel system
- Low noise, low fuel consumption, low maintenance
- Compact and easy to start
- Reliable power
- Water cooled
- Tier-2 emission spec. reference
- Genuine Isuzu engine manufactured in Japan
| Technical data | |
|---|---|
| Engine type | Vertical water-cooled 4-cycle Diesel |
| Model | 4JG1-PK (Isuzu) |
| Emission spec. reference | Tier-2 / Stage-II |
| Max. rated output | 46.2 kW (62.0 hp) @ 2600 RPM |
| Continuous output | 39.3 kW (52.7 hp) @ 2600 RPM |
| Max. torque | 195 Nm @ 1800 RPM |
| Number of cylinders | 4 |
| Displacement | 3.059 L |
| Bore x Stroke | 95.4 x 107 mm |
| Combustion system | Direct Injection (Naturally Aspirated) |
| Dimensions (L x W x H) | 797 (L) x 555 (W) x 779 mm (H) |
| Dry weight | 260 kg |
| Fuel consumption @ 100% load | 13.6* L/h @ 100% load |
POWER UNIT CONFIGURATIONS:
- 1. Starter (STR)
- Light duty air cleaner system
- Industrial grade exhaust system
- Engine mounting feet
- Heavy duty full aluminium cooling system (max. 45°C)
- 12V complete electrical system (incl. engine harness
- 2. Economy (ECY)
- Features include STR plus:
- Medium duty air cleaner system (dual element)
- Skid rail chassis mounting
- Mechanical vernier throttle kit
- IP65 ‘ECO’ engine controller
- Engine RPM sender (MPU)
- 3. Premium (PRM) Features include ECY plus:
- Air cleaner restriction indicator
- Air cleaner rain/inlet hood
- Residential grade exhaust system
- High performance heavy duty cooling system (50°C +)
- Engine oil pressure and temperature senders
- IP65 ‘PRO’ engine controller (advanced watchdog
- Remote oil drain kit
OPTIONS:
- Premium pump pressure transducer range
- Extension skid for mounting of auxiliary items
- Flywheel stub shafts
- Heat Exchanged cooling package
- Auxiliary PTO crankshaft pulley
- 4G remote monitoring and control kit
- Low coolant alarm protection kit
- 160W solar battery charging kit
- Extension harnesses
- Coolant surge tank kit
- 24V electrical system
- Vibration isolation mounts
