ISUZU POWER SOLUTIONS – 4JJ1 XYBW
SKU: 4JJ1-XYBW01
Product information

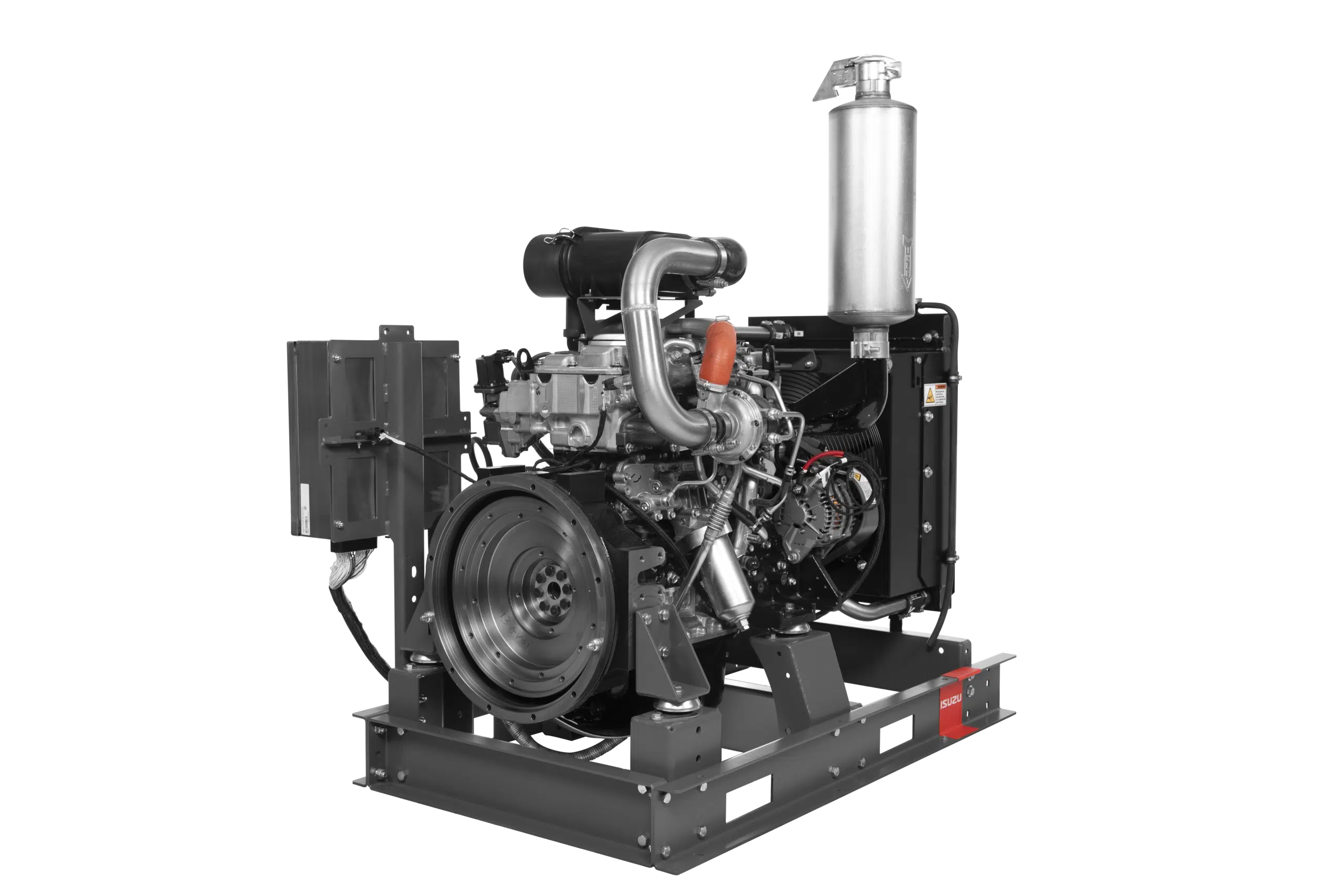

ISUZU 4JJ1 ENGINE
- Turbocharged intercooled diesel engine
- Common rail direct injection fuel system
- Low noise, low fuel consumption, low maintenance
- Easy to start
- Reliable power
- Water cooled
- Tier-3 emission spec. reference
- Genuine Isuzu engine manufactured in Japan
| Technical data | |
|---|---|
| Engine type | Vertical water-cooled 4-cycle Diesel |
| Model | 4JJ1-XYBW01 (Isuzu) |
| Emission spec. reference | Tier-3 / Stage-IIIA |
| Max. rated output | 95.0 kW (127.4 hp) @ 2500 RPM |
| Continuous output | 80.8 kW (108.3 hp) @ 2500 RPM |
| Max. torque | 408 Nm @ 2000 RPM |
| Number of cylinders | 4 |
| Displacement | 3.0 L |
| Bore x Stroke | 95.4 x 104.9 mm |
| Combustion system | Direct Injection (Turbocharged Intercooled) |
| Dimensions (L x W x H) | 977 (L) x 739 (W) x 842 mm (H) |
| Dry weight | 320 kg |
| Fuel consumption @ 100% load | 23.6* L/h @ 100% load |
POWER UNIT CONFIGURATIONS:
- 1. Starter (STR)
- Light duty air cleaner system
- Industrial grade exhaust system
- Engine mounting feet
- Heavy duty full aluminium cooling system (max. 45°C)
- 12V complete electrical system (incl. engine harness
- 2. Premium (PRM) Features include STR plus:
- Heavy duty air cleaner system (dual element)
- Air cleaner restriction indicator
- Residential grade exhaust system
- Skid rail chassis mounting
- High performance heavy duty cooling system (50°C +)
- IP65 ‘PRO’ engine controller (advanced watchdog
- Remote oil drain kit
OPTIONS:
- Flywheel stub shafts
- Auxiliary PTO clutch
- Extension skid for mounting of auxiliary items
- Premium pump pressure transducer range
- 4G remote monitoring and control kit
- Low coolant alarm protection kit
- 160W solar battery charging kit
- Extension harnesses
- Coolant surge tank kit
- Vibration isolation mounts
