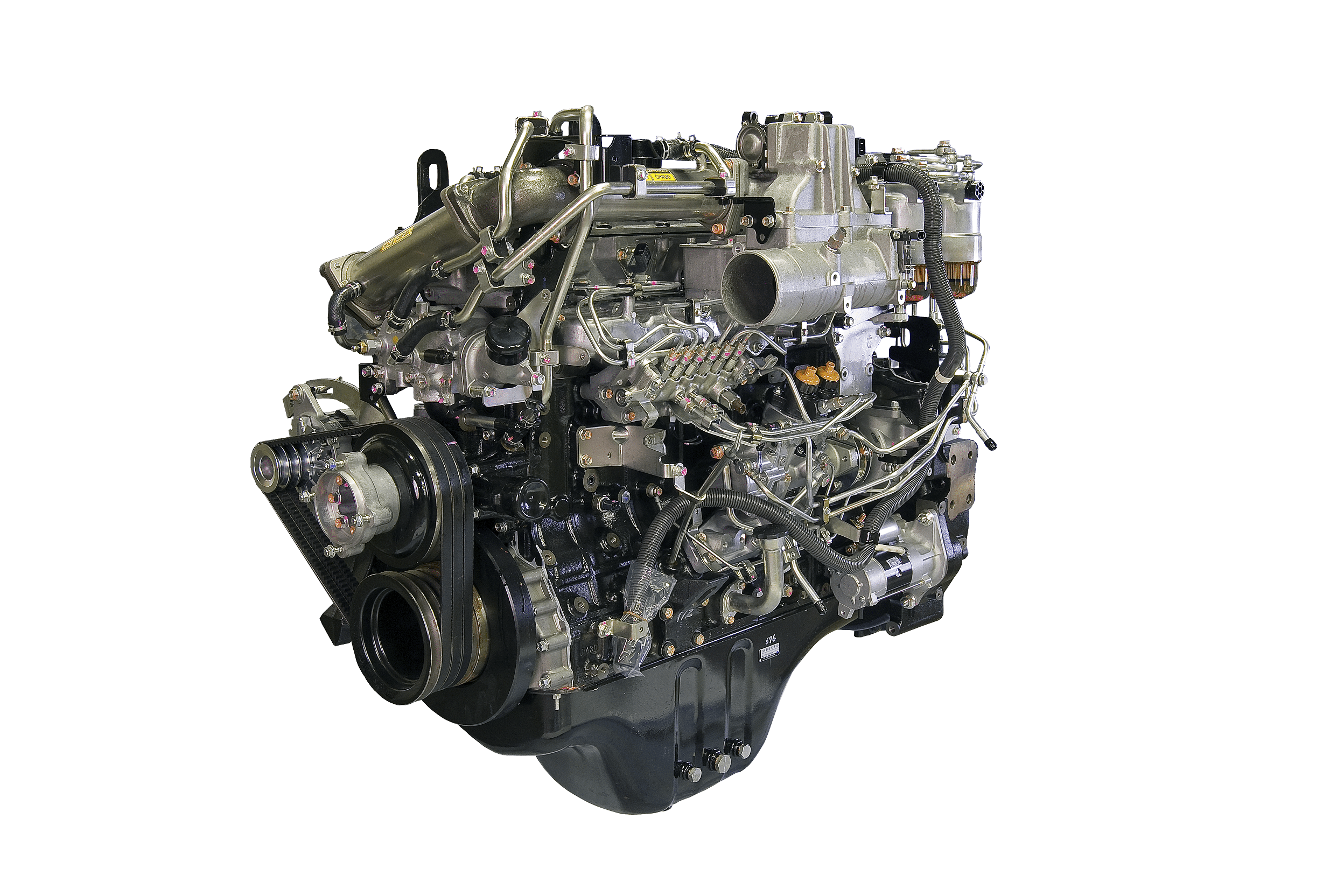

ISUZU POWER SOLUTIONS – 6UZ1
SKU: 6UZ1-XYBW01
Product information
ISUZU 6UZ1 ENGINE
- Turbocharged intercooled diesel engine
- Common rail direct injection fuel system
- Low noise, low fuel consumption, low maintenance
- Easy to start
- Reliable power
- Water cooled
- Tier-3 emission spec. reference
- Genuine Isuzu engine manufactured in Japan
| Technical data | |
|---|---|
| Engine type | Vertical water-cooled 4-cycle Diesel |
| Model | 6UZ1-XYBW01 (Isuzu) |
| Emission spec. reference | Tier-3 / Stage-IIIA |
| Max. rated output | 270.0 kW (362.1 hp) @ 1950 RPM |
| Continuous output | 229.5 kW (307.8 hp) @ 1950 RPM |
| Max. torque | 1435 Nm @ 1500 RPM |
| Number of cylinders | 6 |
| Displacement | 9.8 L |
| Bore x Stroke | 120 x 145 mm |
| Combustion system | Direct Injection (Turbocharged, Intercooled) |
| Dimensions (L x W x H) | 1368 (L) x 1012 (W) x 1230 mm (H) |
| Dry weight | 840 kg |
| Fuel consumption @ 100% load | 69.0* L/h @ 100% load |
POWER UNIT CONFIGURATIONS:
- 1. Starter (STR)
- Light duty air cleaner system
- Industrial grade exhaust system
- Engine mounting feet
- Heavy duty full aluminium cooling system (max. 45°C)
- 24V complete electrical system (incl. engine harness
- 2. Premium (PRM) Features include STR plus:
- Heavy duty air cleaner system (dual element)
- Air cleaner restriction indicator
- Residential grade exhaust system
- Skid rail chassis mounting
- High performance heavy duty cooling system (50°C +)
- IP65 ‘PRO’ engine controller (advanced watchdog
- Remote oil drain kit
