VORTUM – V13
SKU: V13
Product information
VORTUM V13 SUPER-SILENCED MARINE GENERATOR
- Best for mid-sized cruisers or houseboats.
- 13 kW / 13 kVA output
- 68 dB @ 1m, 59 dB @ 7m under full load
- Genuine Isuzu 3CE1BGZG1 engine
- Genuine MeccAlte Italy NPE32M 1M4C
- Zenith Engineering fabricated marine cooling package
- Manufactured in Australia
| Technical data | |
|---|---|

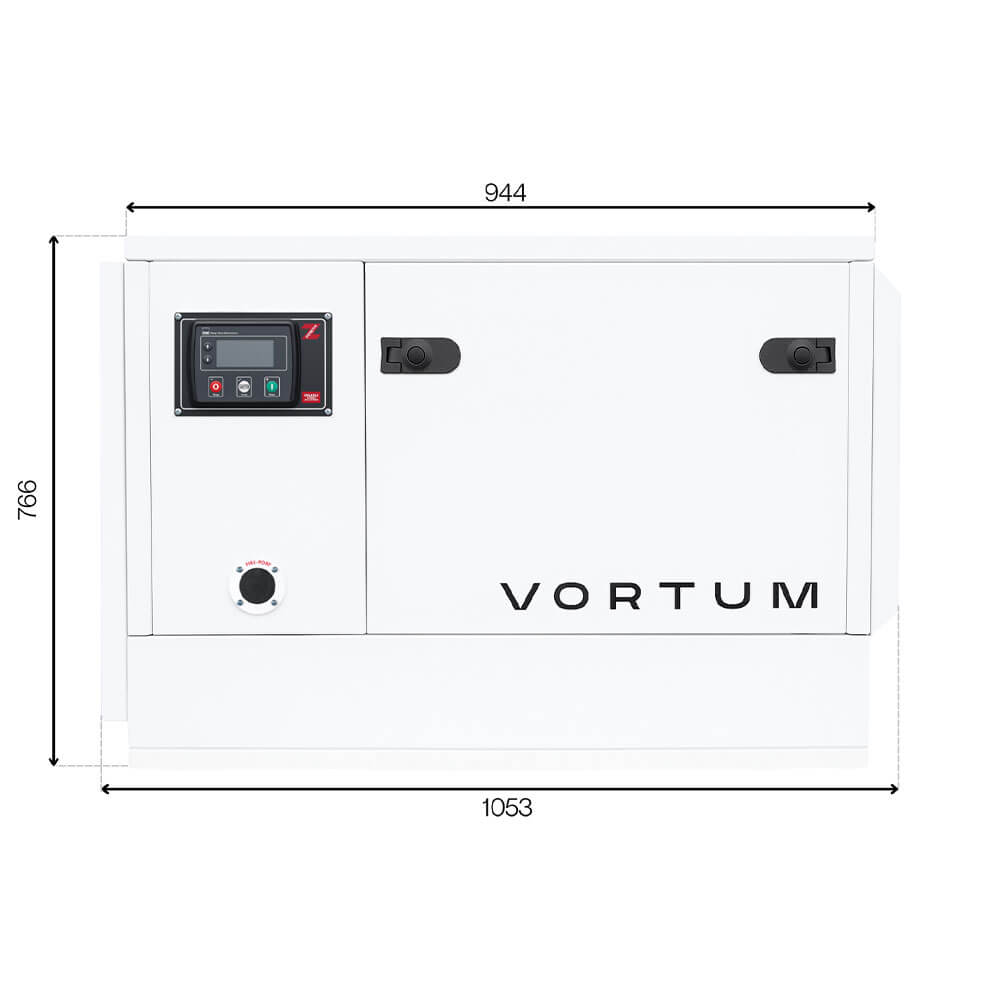

| Dimensions | 1053mm x 660mm x 766mm |
| Weight | 365kg |
| Engine make | Isuzu |
| Engine model | 3CE1BGZG1 |
| Cylinders | 3 |
| Capacity | 1642 cc |
| Emissions rating | Interim Tier 4 |
| Electrics on engine | 12V |
| Cooling package | Fully marinised wet exhaust |
| Alternator make | Mecc Alte |
| Alternator model | NPE32M 1M4C |
| AVR control | Mecc Alte DSR |
| Alternator extras | Anti-condensation heater fitted, windings double dipped marine varnish |
| Output voltage | 230V |
| Frequency / RPM | 50 Hz / 1500 RPM |
| kW output (110%) | 13 kW |
| Phase configuration | Single |
| Power factor (Pf) | 1 |
| Full load @ 1m | 68 dB |
| Full load @ 7m | 59 dB |
STANDARD BUILD INCLUSIONS:
- DSE4520 MKII control panel mounted to cabinet
- Wet exhaust outlet interchangeable at either end of cabinet
- Multiple syphon break port locations available
- Anti-condensation heaters fitted to Mecc Alte alternator
- Mecc Alte alternator windings double dipped marine varnish for extra protection in marine environment
- Starter kit of spares
OPTIONAL EXTRAS:
- Remote key start panel with ESTOP fitted
- Extension harness for remote panel mounting (all lengths available)
